特征：

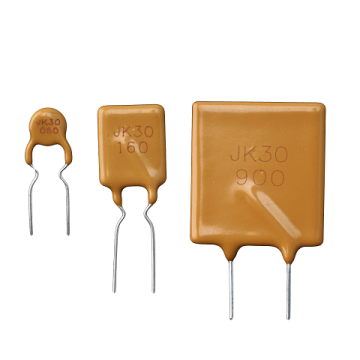

径向引线型 ，多规格方式
包封材料为阻燃，符合UL94V0要求
多种包装形式，散装、带装与盘装
符合RoHS、Reach、HF、UL、C-UL、TUV
应用：
电池组、消费电子、电子玩具(电机堵转过流保护)
IEEE 1394端口、USB集线器、端口和外设
按摩椅、电脑主板、卫星视频接收机
| Part Number | Vmax (Vdc) | Imax (A) | Ihold (A) | Itrip (A) | Pd (W) | Current (A) | Time (S) | Rmin (mΩ) | R1max (mΩ) |
| 30 | 40 | 0.50 | 1.00 | 0.5 | 2.5 | 5 | 250 | 600 | |
| 30 | 40 | 0.75 | 1.50 | 0.6 | 3.75 | 5 | 200 | 370 | |
| 30 | 40 | 0.90 | 1.80 | 0.7 | 4.5 | 8 | 100 | 220 | |
| 30 | 40 | 1.10 | 2.20 | 0.7 | 5.5 | 8 | 70 | 200 | |
| 30 | 40 | 1.20 | 2.40 | 0.8 | 6.0 | 8 | 80 | 180 | |
| 30 | 40 | 1.35 | 2.70 | 0.8 | 6.75 | 8 | 70 | 160 | |
| 30 | 40 | 1.60 | 3.20 | 0.9 | 8.0 | 8 | 60 | 140 | |
| 30 | 40 | 1.85 | 3.70 | 1.0 | 9.25 | 8 | 50 | 120 | |
| 30 | 40 | 2.00 | 4.00 | 1.2 | 10.0 | 11 | 40 | 100 | |
| 30 | 40 | 2.50 | 5.00 | 1.2 | 12.5 | 11 | 30 | 80 | |
| 30 | 40 | 3.00 | 6.00 | 2.0 | 15.0 | 11 | 30 | 70 | |
| 30 | 40 | 4.00 | 8.00 | 2.5 | 20.0 | 12.7 | 10 | 60 | |
| 30 | 40 | 5.00 | 10.0 | 3.0 | 25.0 | 14.5 | 10 | 50 | |
| 30 | 40 | 6.00 | 12.0 | 3.5 | 30.0 | 16 | 5 | 40 | |
| 30 | 40 | 7.00 | 14.0 | 3.8 | 35.0 | 17.5 | 5 | 30 | |
| 30 | 40 | 8.00 | 16.0 | 4.0 | 40.0 | 18.8 | 5 | 25 | |
| 30 | 40 | 9.00 | 18.0 | 4.2 | 40.0 | 20 | 5 | 20 |
