特征：

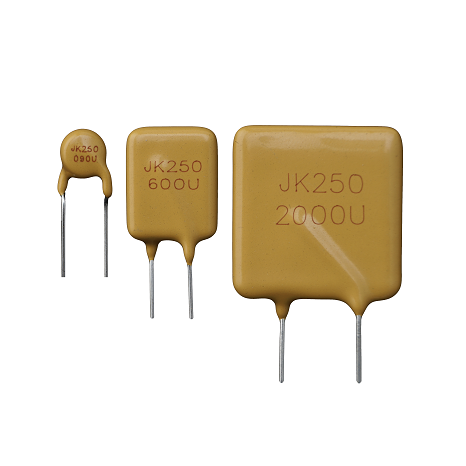

径向引线型 ，多规格方式
包封材料为阻燃，符合UL94V0要求
多种包装形式，散装、带装与盘装
符合RoHS、Reach、HF、UL、C-UL、TUV
应用：
扫地机、按摩椅、厨房家电
变压器、电源适配器、小功率电机
打印机、USB集线器、485端口和外设
| Part Number | Vmax (Vdc) | Imax (A) | Ihold (mA) | Itrip (mA) | Pd (W) | Current (A) | Time (S) | Rmin (Ω) | R1max (Ω) |
| 250 | 3 | 20 | 45 | 1.0 | 0.5 | 0.5 | 80 | 160 | |
 DM-JK250-030 | 250 | 3 | 30 | 65 | 1.0 | 0.5 | 0.5 | 60 | 120 |
| DM-JK250-040 | 250 | 3 | 40 | 80 | 1.0 | 0.5 | 1.5 | 30 | 60 |
| DM-JK250-050 | 250 | 3 | 50 | 100 | 1.0 | 0.5 | 2 | 25 | 50 |
| DM-JK250-060 | 250 | 3 | 60 | 120 | 1.0 | 0.5 | 2 | 20 | 60 |
| 250 | 3 | 80 | 160 | 1.0 | 1.0 | 0.5 | 12 | 22 | |
| DM-JK250-090 | 250 | 3 | 90 | 180 | 1.0 | 1.0 | 0.8 | 10 | 20 |
| DM-JK250-100 | 250 | 3 | 100 | 200 | 1.0 | 1.0 | 1 | 10 | 20 |
| DM-JK250-110 | 250 | 3 | 110 | 220 | 1.0 | 1.0 | 2 | 6 | 12 |
| DM-JK250-120 | 250 | 3 | 120 | 240 | 1.0 | 1.0 | 2 | 6 | 11 |
| DM-JK250-145 | 250 | 3 | 145 | 290 | 1.0 | 1.0 | 5 | 3.5 | 6.5 |
| 250 | 3 | 180 | 650 | 1.8 | 3 | 3 | 1 | 2.2 | |
| DM-JK250-180T | 250 | 3 | 180 | 650 | 1.8 | 3 | 1.5 | 2 | 4 |
| DM-JK250-200 | 250 | 5 | 200 | 400 | 2.4 | 3 | 5 | 3 | 6 |
| DM-JK250-400 | 250 | 5 | 400 | 800 | 2.8 | 3 | 8 | 1 | 3 |
| DM-JK250-600 | 250 | 5 | 600 | 1200 | 3.2 | 3 | 12 | 0.6 | 2 |
| DM-JK250-800 | 250 | 5 | 800 | 1600 | 3.6 | 4 | 18 | 0.4 | 1 |
| DM-JK250-1000 | 250 | 7 | 1000 | 2000 | 3.6 | 5 | 20 | 0.3 | 0.8 |
| DM-JK250-1200 | 250 | 7 | 1200 | 2400 | 3.6 | 6 | 20 | 0.2 | 0.8 |
| DM-JK250-1500 | 250 | 7 | 1500 | 3000 | 4.8 | 7.5 | 20 | 0.2 | 0.6 |
| DM-JK250-2000 | 250 | 10 | 2000 | 4000 | 4.8 | 10 | 20 | 0.2 | 0.4 |
